Cured-in-place pipe (CIPP) lining Austin and epoxy pipe lining installation in Austin explained in detail.
There are essentially 3 steps to pipe lining installation in Texas:
- Clean the rust and scale out of the pipes verified using a camera.
- Install the epoxy on the surface of the pipe. The 3 main methods:
- Epoxy Pipe Lining
- Using Cured-In-Place Pipe (CIPP) lining (older, riskier method)
- UV-cured Pipe Lining
- Make final video recordings
First, the old scale and rust have to be removed using patented tools designed to remove rock-hard scale and rust, without breaking up the old remaining pipe.
This carbide chain has very sharp edges and it fits on a special cable that rotates at 600 RMP inside the pipe. The chains come in specific sizes that can only expand to the width of the internal diameter of the pipe being cleaned, which prevents any excessive outward pressure on the pipe wall.
First, the old scale and rust have to be removed using patented tools designed to remove rock-hard scale and rust, without breaking up the old remaining pipe.
This carbide chain has very sharp edges and it fits on a special cable that rotates at 600 RMP inside the pipe. The chains come in specific sizes that can only expand to the width of the internal diameter of the pipe being cleaned, which prevents any excessive outward pressure on the pipe wall.
Attach to the Rotating Cable
Next, this tool is attached to the rotating cable. It has 4 “sandpaper flaps” that sand down the remaining pipe to make it smooth.
Wash The Debris Out Of The Pipe
Next, a high-pressure water “jetter” is inserted into the pipe which washes out all the debris. At the end of the cleaning process, all roots, rust, and scale have been removed, and cracks and holes are clearly visible in the next step.
Video Inspect The Pipe

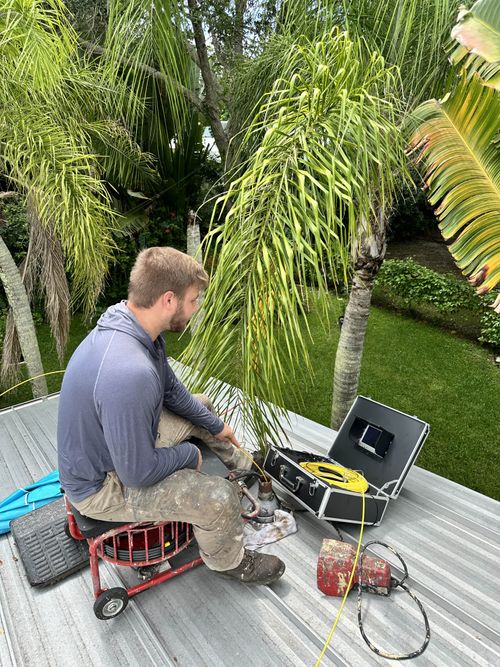

Next, a video camera is run through the pipe to see how long the pipe is and whether it has been cleaned sufficiently. The cleaning process might have to be repeated. Also, if there are very large holes and voids at the bottom of the pipe, they will be filled with epoxy under camera supervision, prior to pipe lining.
2. Pipe Lining Installation
Option 1: Epoxy Pipe Lining Installation
- Use high-pressure air flow to dry the pipes
- Prepare the epoxy mixer, pump, hoses, and delivery nozzle
- Push the delivery nozzle and video inspection camera to the furthest end of the pipe
- Turn on the mixer and pump, and start rotating the nozzle
- Pull back the camera and delivery nozzle slowly under camera supervision to ensure that a uniform layer of epoxy is applied to the inside of the pipe
- Allow the epoxy to harden (1hr-4hrs), and install the second layer of epoxy pipe lining
